Neon, Ne Rare Gas

CAS NO 7440-01-9
UN NO 1065
EINECS NO 231-110-9
Molecular weight 20.1797(6)
Appearance Colorless, odorless
Melting point -248.6 ℃
Boiling point- 245.9℃
Density 0.9002 g/L
DOT Class 2.2
Label Non-flammable Gas

Neon is a colorless, odorless, non-flammable noble gas. Of all the noble gases, the discharge of neon is the strongest at equal voltages and currents.

Neon is the third most abundant element in the Earth's crust, after argon and helium, but it is the most abundant element in the atmosphere. Its content in the atmosphere is about 18.2 cubic centimeters in 1 cubic meter of air. At normal pressure, neon liquefies at -246.05°C and freezes at -248.6°C. Neon is obtained as a by-product from the atmosphere in the form of a neon-helium mixture during cryogenic rectification separation. The pure components neon (Ne) and helium (He) are extracted from the resulting neon-helium mixture by several methods:

1. Adsorption method, based on the ability of neon, unlike helium, to be adsorbed on activated carbon cooled with liquid nitrogen;

2. Condensation method, based on the freezing of neon when the mixture is cooled with liquid hydrogen;

3. Rectification method, based on the difference in boiling points of helium and nitrogen.

Contact us.


Filling gas discharge lamps, signal lamps in radio technical equipment, photocells, rectifiers: neon lights are used for signaling purposes in lighthouses and airports, they indicate the tops of high-rise buildings and television towers because their red color is very weak scattered by fog, filled with neon gas and Tubes of nitrogen mixtures glow orange-red when discharged and are widely used in advertising;

A mixture of neon and helium is used as a working medium for gas lasers (helium-neon lasers);

Liquid neon is used as a refrigerant in cryogenic systems;

The neon in the neon-helium mixture is used by divers for breathing, and people work under high pressure to avoid gas embolism and nitrogen narcosis. shipping requirements,

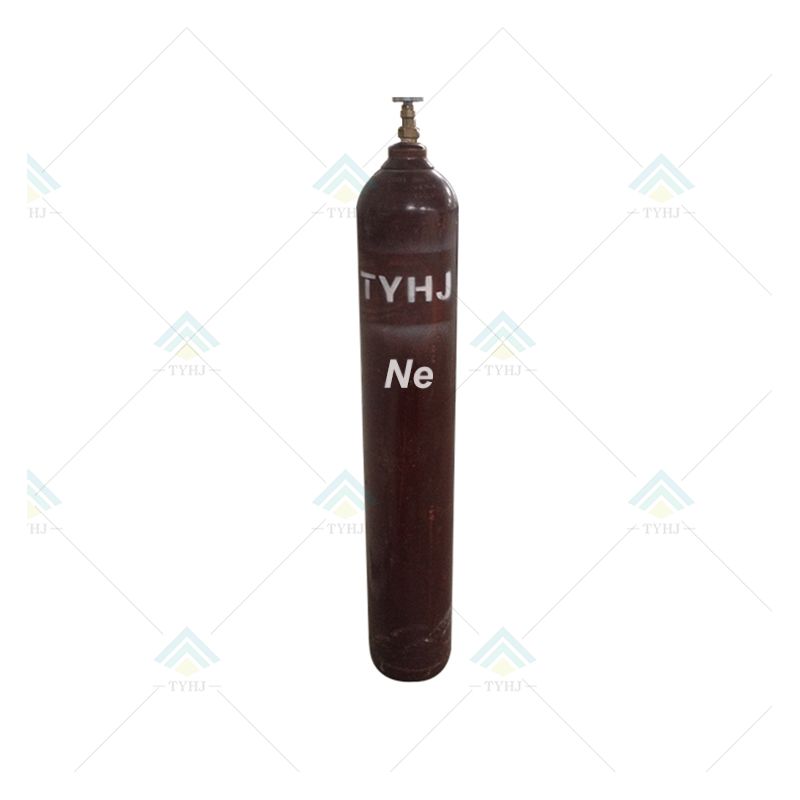

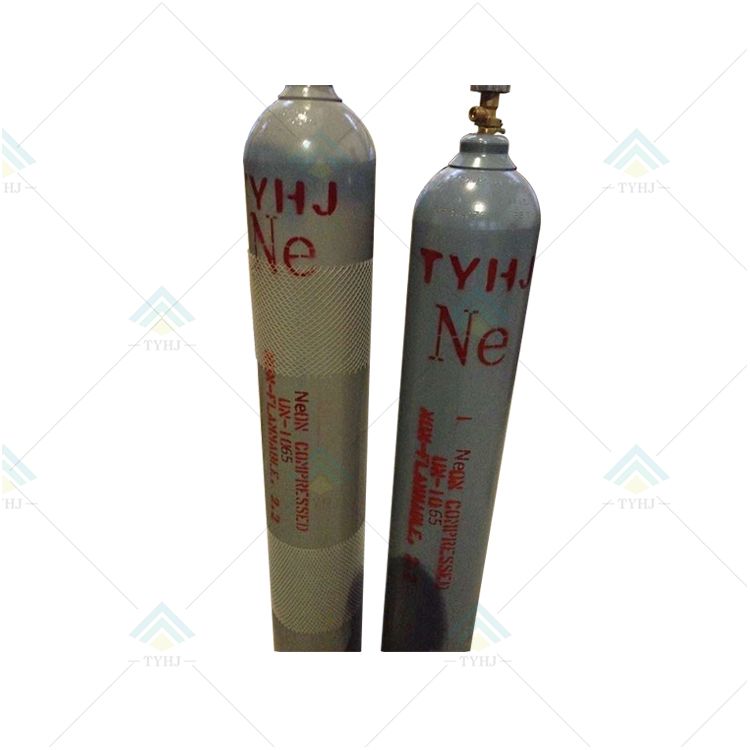

We offer gaseous and Neon Gas Bottles in a variety of sizes to meet your precise application needs.

Fill medium for neon lights

Fill medium for neon lights

For laser technology, laser gas

For laser technology, laser gas

For high energy physics research

For high energy physics research

99.999% Ne, High Purity Grade

Specification 99.999%
Helium≤ 3.0 ppm
Hydrogen≤ 1.0 ppm
Oxygen + Argon≤ 1.0 ppm
Nitrogen≤ 1.0 ppm
Methane≤ 0.1 ppm
Carbon Monoxide≤ 1.0 ppm
Carbon Dioxide≤ 1.0 ppm
Moisture≤ 2.0 ppm

*Other Grades and Purity Available on Asking

Package Information

Cylinder SpecificationsContentsPressure
Cylinder CapacityValveVolumebarpsig
40LCGA5806 m31502175
47LCGA5807 m31502175
50LCGA58010 m32002900

*Other Packages Available on Asking


More than fifteen years on the market.

ISO certificate manufacturer & Stable raw material source.

On-line analysis system for gas quality control in every step, highly close to 100% pass rate.

Experienced DG International Shipping Team by sea & air.
